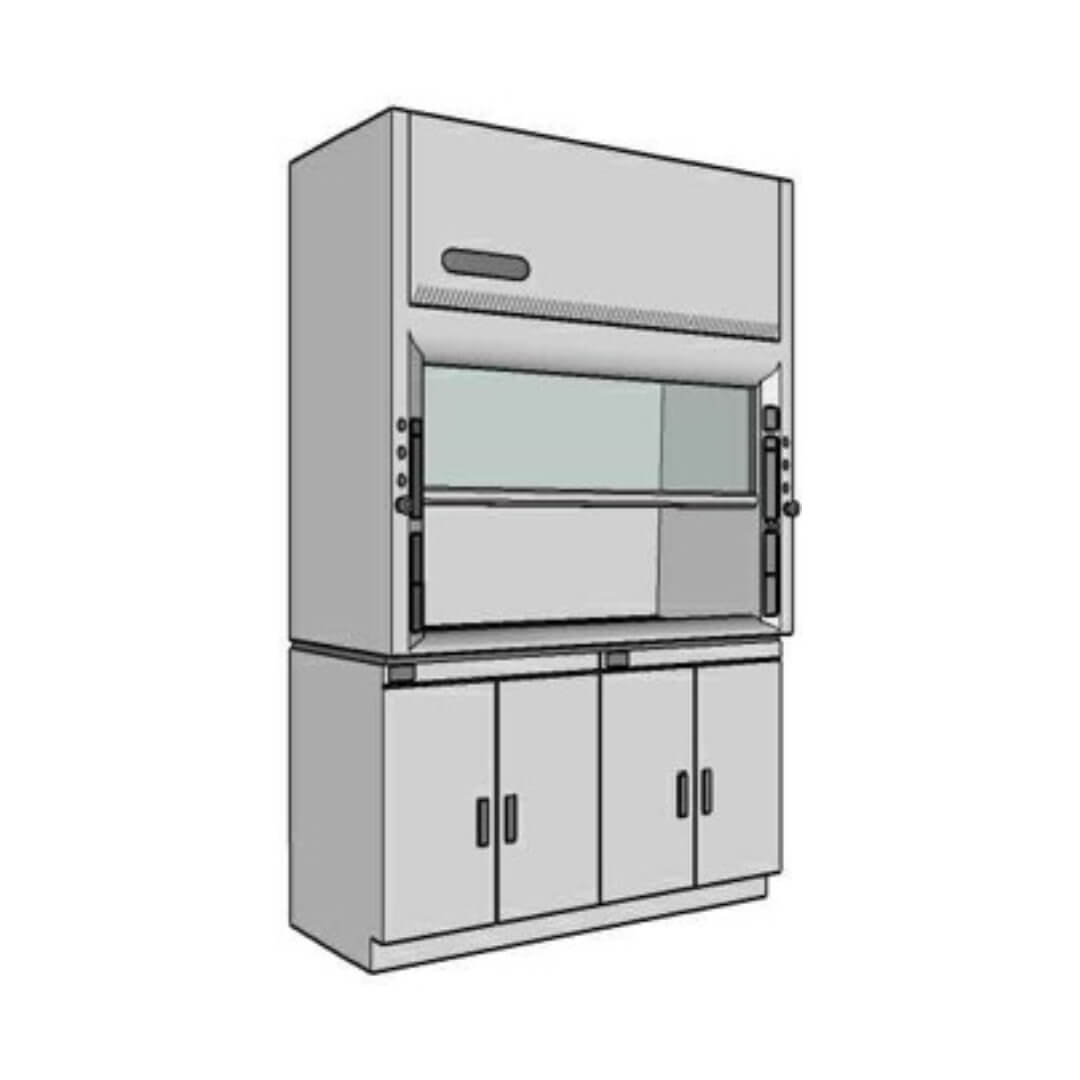

| Fumehood Model: |
Base Stand Cabinet |
| Body Dimension: |
1800 x 800 x 2300 mm |
| Material: |
Polypropylene Chemical Resistance |
| Baffle & Inner Material: |
Polypropylene Chemical Resistance |
| Sash Door Material: |
Tempered Glass 6 mm |
| Sash Door System: |
Vertical Balanced Sliding Sash Door (Manual Opening) |
| Handle: |
Phenolic Resin Frame & Natural Anodized Aluminium |
| Top Table Material: |
Phenolic Resin Chemical Resistance Thickness 16 mm |
| Electrical Socket: |
4 Pcs Electrical Socket IP55 (with Close Cap for Dust & Water Splash Protection) |
| Lighting: |
2 Pcs LED Downlight Lamp 14 Watt |
| Ducting: |
PVC Pipe 8 Inch (Free 6 Meter, Additional Charge May Applies if Excess) |
| Blower for Exhaust: |
|
| Blower Model: |
300 Series |
| Blower Type: |
Centrifugal Blower Chemical Resistance |
| Propeler Material: |
Polypropylene Chemical Resistance |
| Electrical Requirement: |
380 V, 50 Hz, 3 Phase |
| Power Consumption: |
1500 Watt |
| Fan Speed: |
1400 RPM |
| Capacity/Air Volume: |
4500 CMH |
| Pressure: |
500 Pa |
